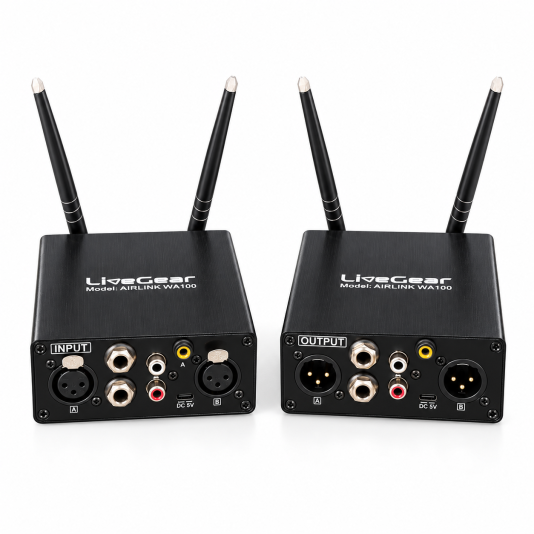

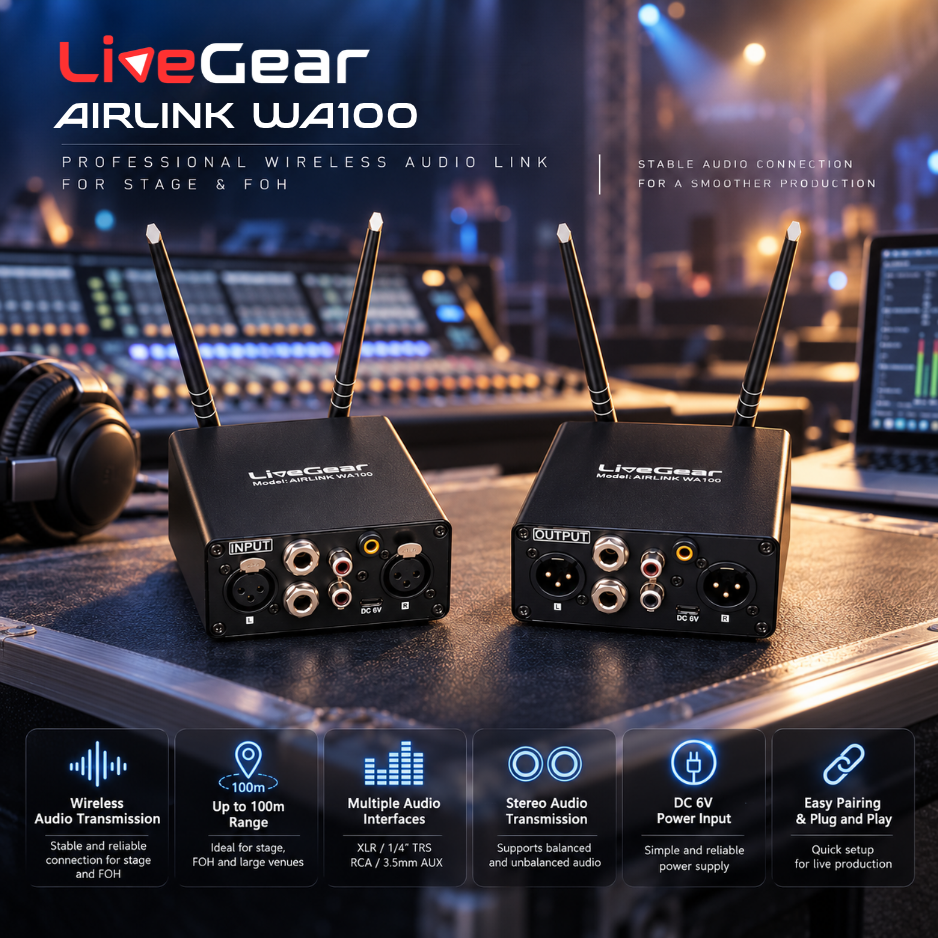

LiveGear AIRLINK WA100 – Professional Wireless Audio Transmission System
Reliable Wireless Audio. Flexible Connectivity. Professional Performance.
The AIRLINK WA100 is a professional dual-channel wireless audio transmission system designed to deliver flexible audio connectivity for live sound production, FOH applications, music performances, studios, and event installations.
Featuring a wireless operating frequency of 590–619 MHz and up to 100 meters of transmission range in open areas, the system provides a convenient wireless connection between audio sources, mixers, amplifiers, and active speakers.

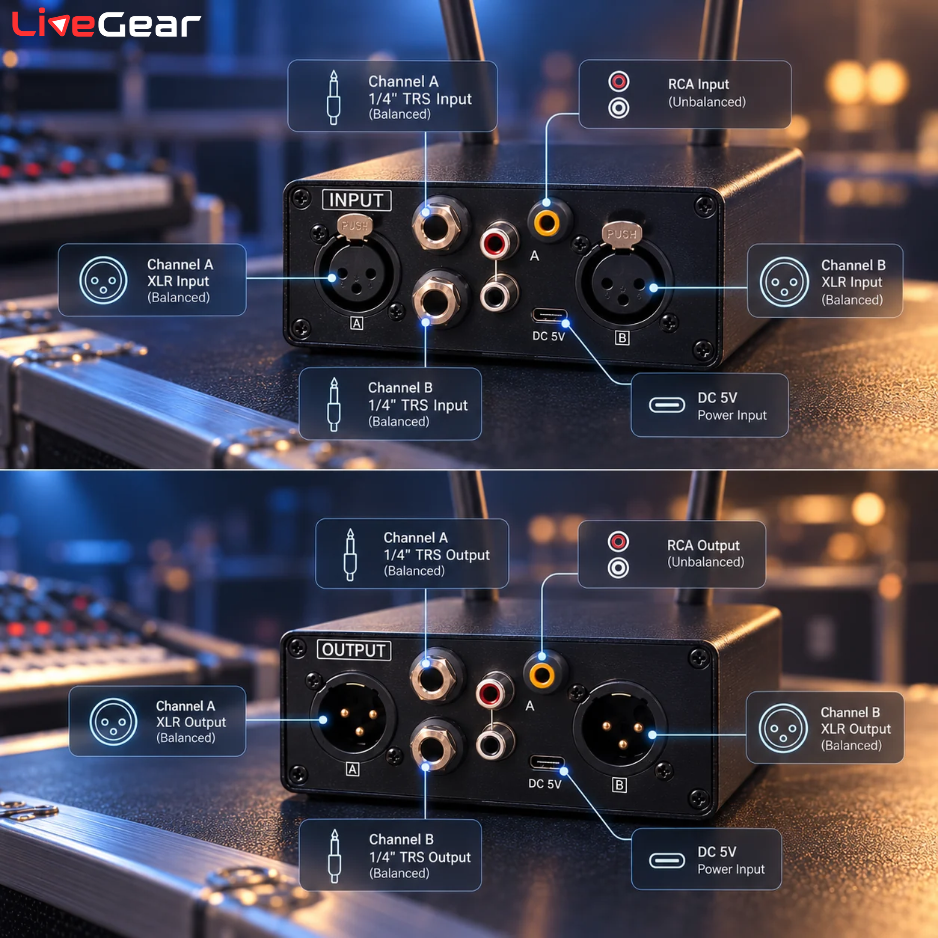

With support for balanced and unbalanced audio connections, the AIRLINK WA100 offers versatile integration with professional audio equipment through XLR, 1/4-inch TRS, RCA, and 3.5 mm interfaces.
Key Features
Up to 100 m Wireless Range – Provides wireless audio connectivity over long distances in open areas.
Dual-Channel Transmission – Supports separate Channel A and Channel B audio transmission.
590–619 MHz Operating Frequency – Designed for professional wireless audio applications.

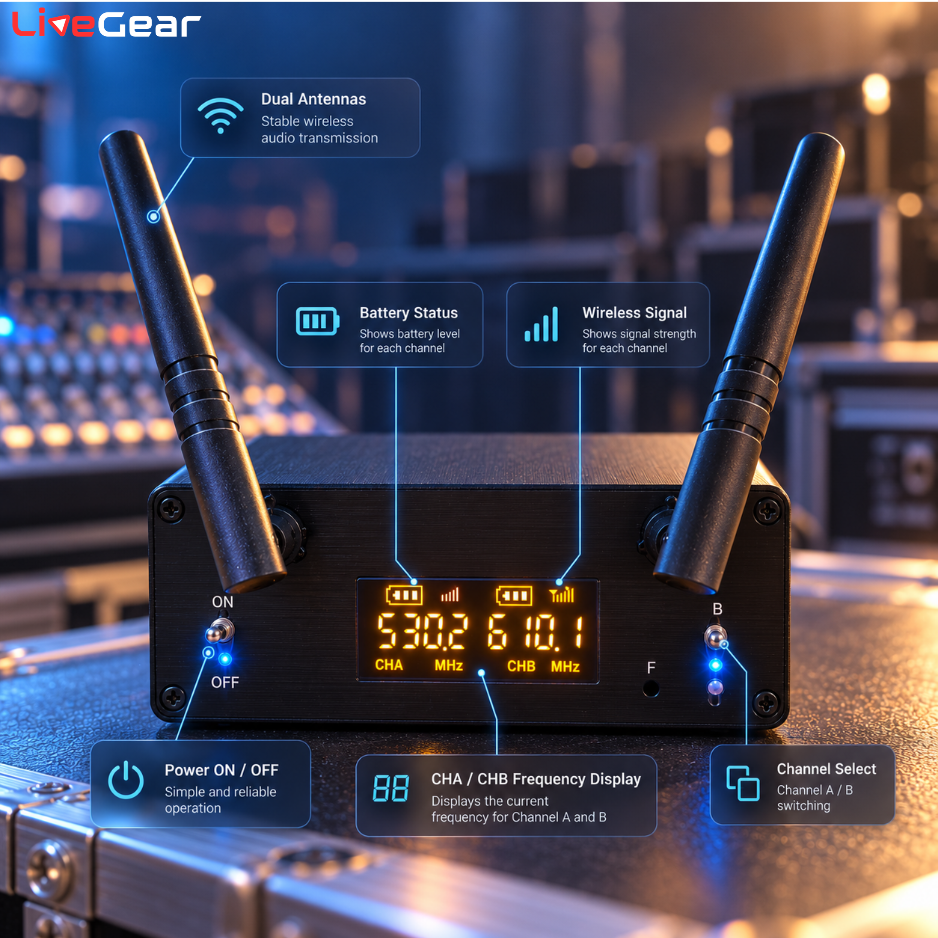

20 Selectable Channels – Offers multiple channel options for flexible frequency selection.
Ultra-Low Latency – Less than 0.5 ms audio transmission delay.
Multiple Audio Interfaces – Supports XLR, 1/4-inch TRS, RCA, and 3.5 mm connections.
Balanced & Unbalanced Audio – Compatible with different professional audio connection types.
Wide Frequency Response – Covers 20 Hz–20 kHz for full-range audio reproduction.

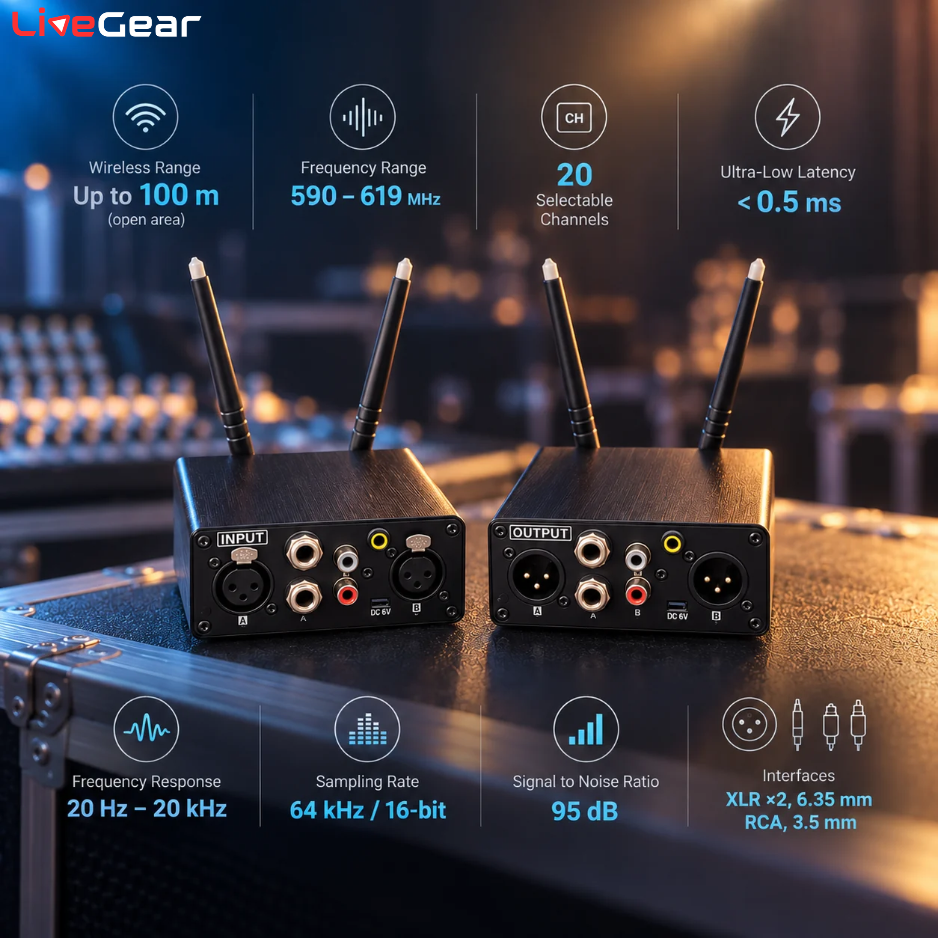

Technical Specifications
| Specification | Details |
|---|---|
| Operating Frequency | 590–619 MHz |
| Wireless Range | Up to 100 m (Open Area) |
| Selectable Channels | 20 Channels |
| Channel Spacing | 4 MHz |
| Modulation | GFSK |
| Audio Frequency Response | 20 Hz–20 kHz |
| Latency | Less than 0.5 ms |
| Sampling Rate | 64 kHz / 16-bit |
| Signal-to-Noise Ratio | 95 dB |
| Dynamic Range | 90 dB |
| Total Harmonic Distortion | 0.3% @ 1 kHz |
| Left/Right Channel Isolation | 85 dB |
| Audio Interfaces | XLR, 6.35 mm, RCA, 3.5 mm |
| Operating Voltage | DC 3.6–6 V |
Ideal Applications
Live Sound & FOH Systems
Keyboard and Electronic Instruments
Audio Mixer to Active Speaker Connections
Stage and Event Production
Professional Audio Installations
Studio and Broadcast Applications
Simplify Your Audio Setup
Experience greater flexibility and freedom in professional audio connections with the AIRLINK WA100 wireless audio transmission system.
