Main Feature:

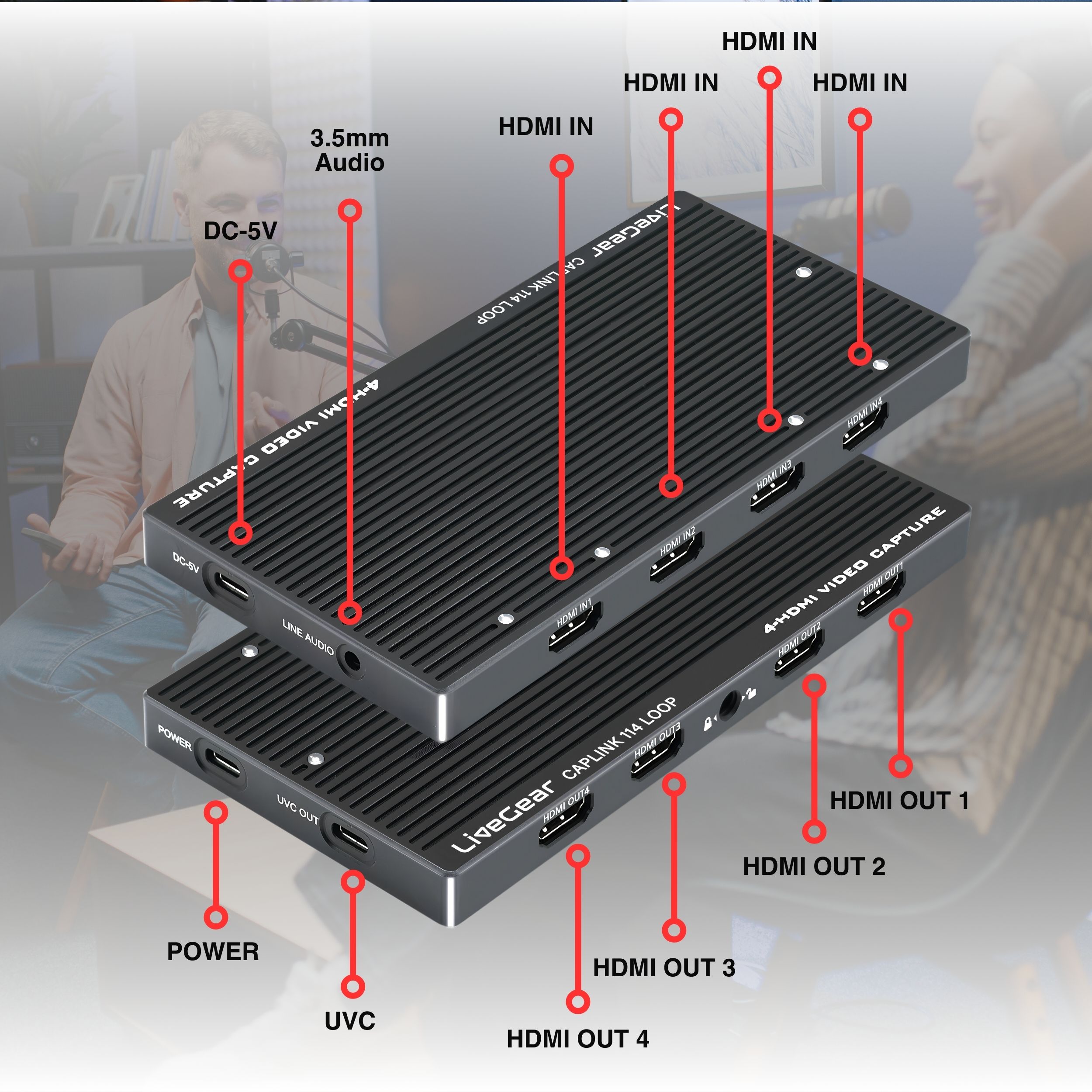

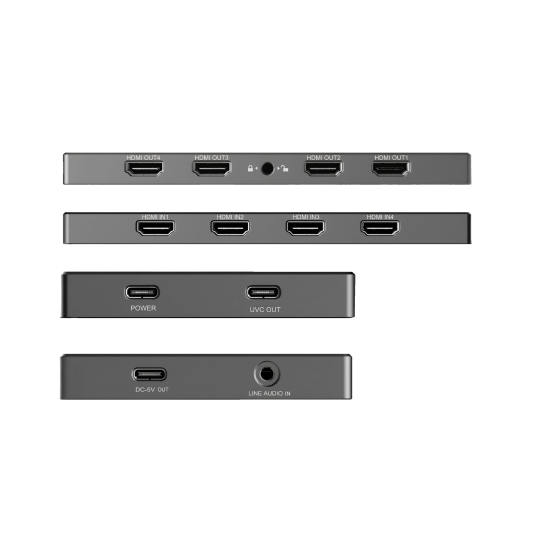

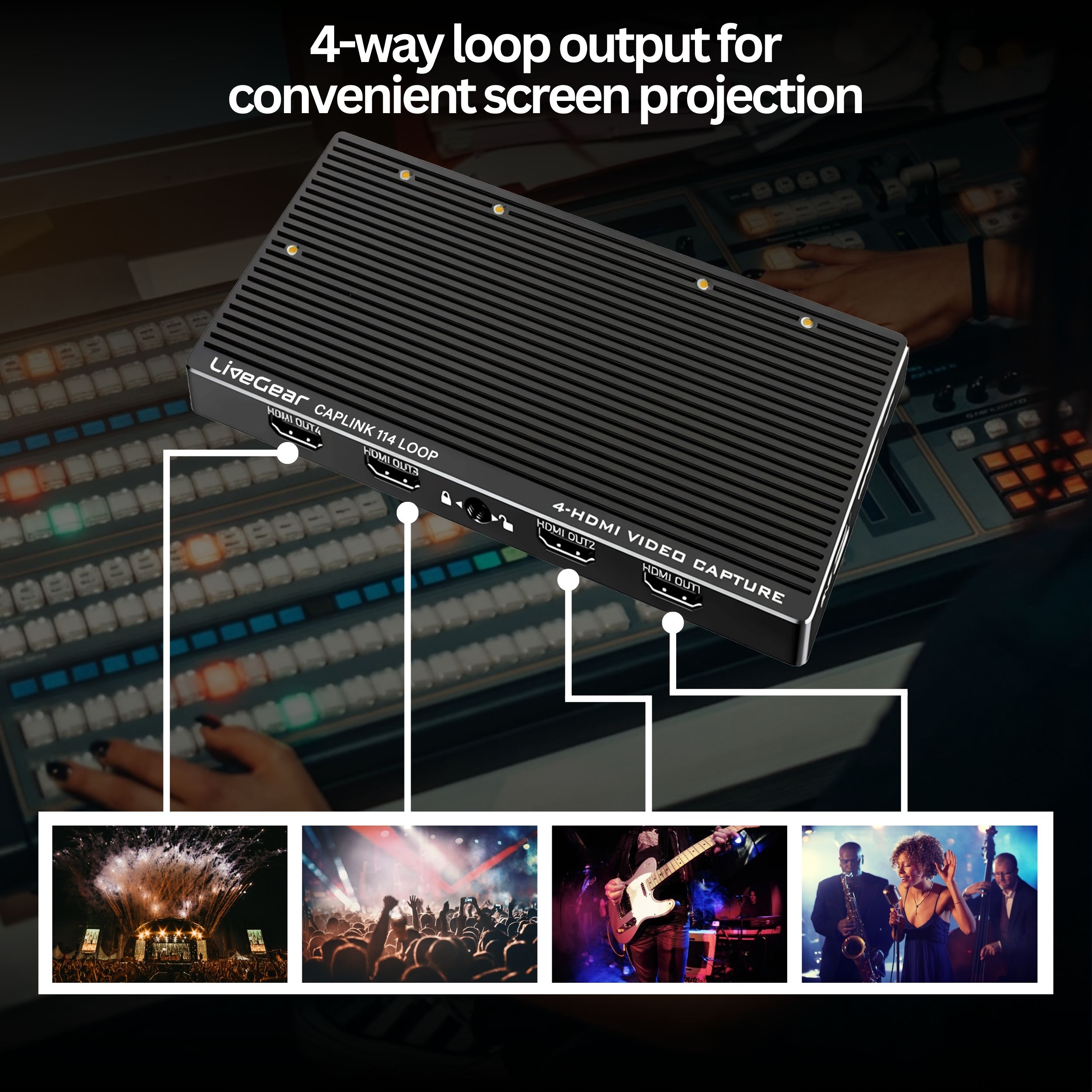

- 4 channel 4K60 input and loop out, with 3.5mm Audio input
- Support UVC out by YUV422 /MJPEG/RGB24/NV12
- Driver-Free USB
- Compatible with windows xp/7/8/10/11, Android 5.0 above and MacOS

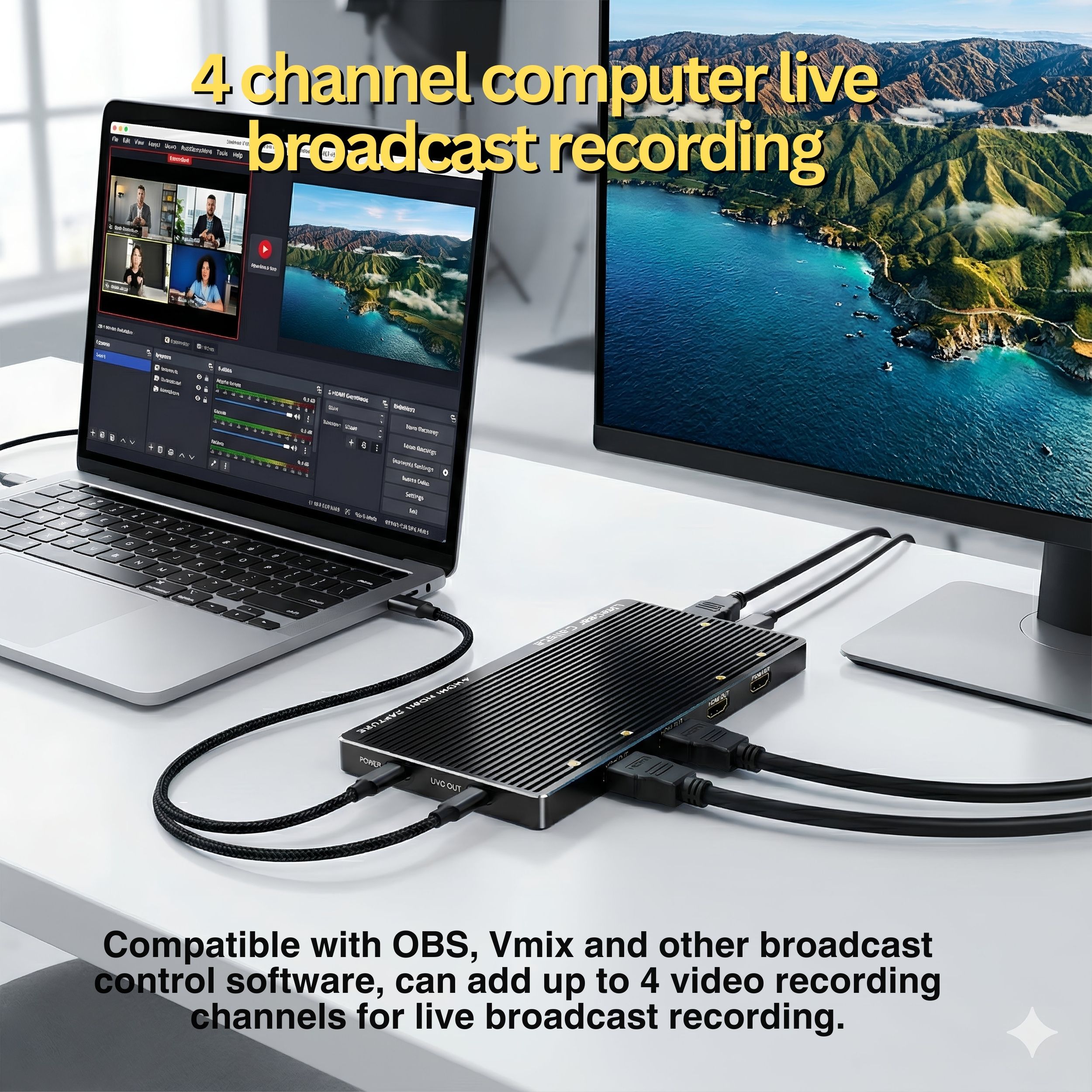

OBS Vmix multi-camera live streaming by mobile or PC

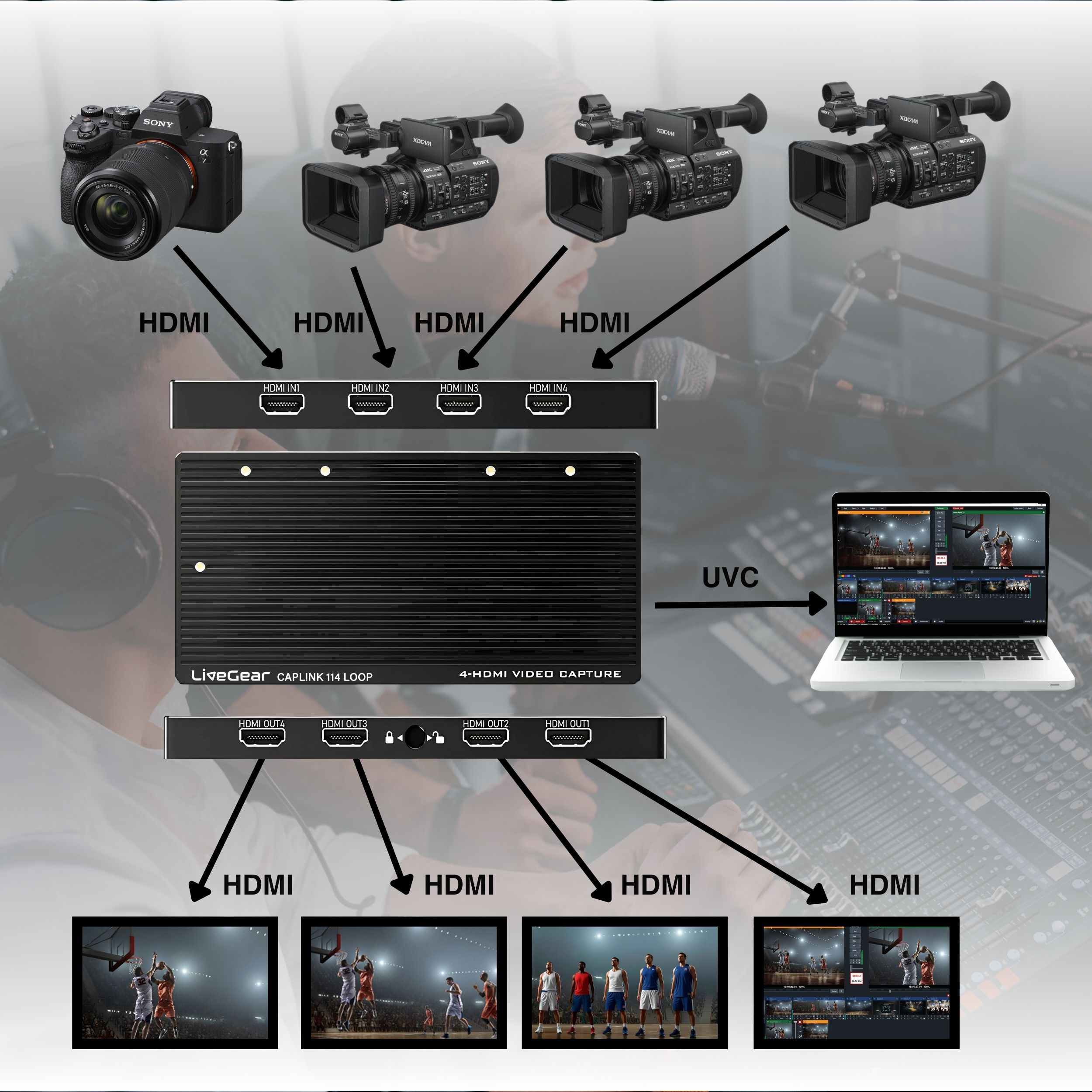

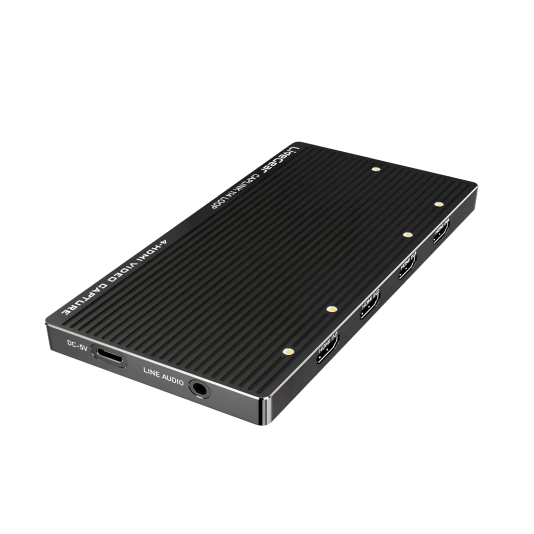

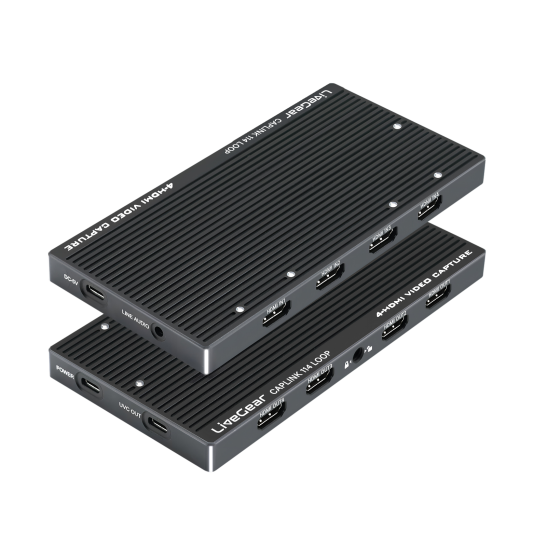

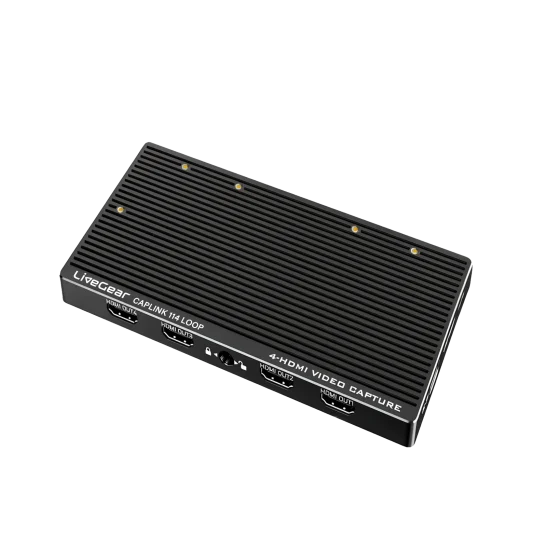

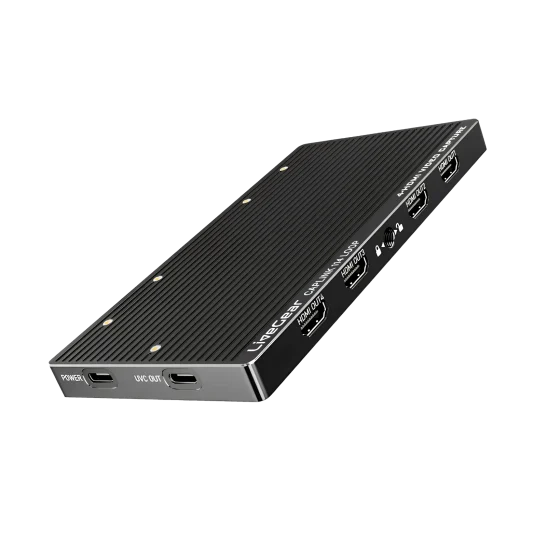

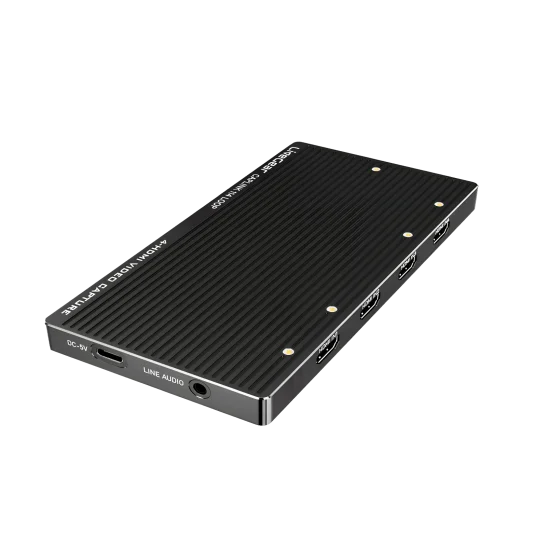

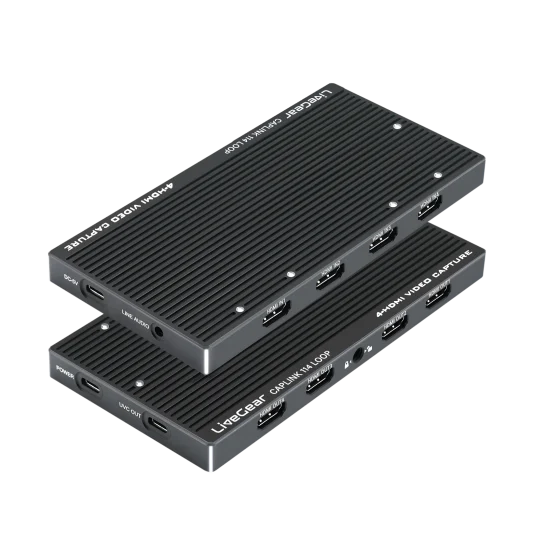

The 4-Channel HDMI Capture Card integrates four HDMI-to-USB capture channels via a USB hub. It connects to a computer’s Type-C port using the provided Type-C cable. Compliant with standard UVC protocol (plug-and-play, no drivers required), it works with software like OBS, vMix, and Zoom on computers, as well as the "V Director Recording" app on mobile devices and iPads.
Add four distinct "Video Capture Device" sources in your software to display all four audio/video signals simultaneously and enable broadcast switching.
For optimal high-resolution capture, ensure your computer supports USB 3.2 Gen 2 (10Gbps bandwidth) and use Thunderbolt 3/4 cable.

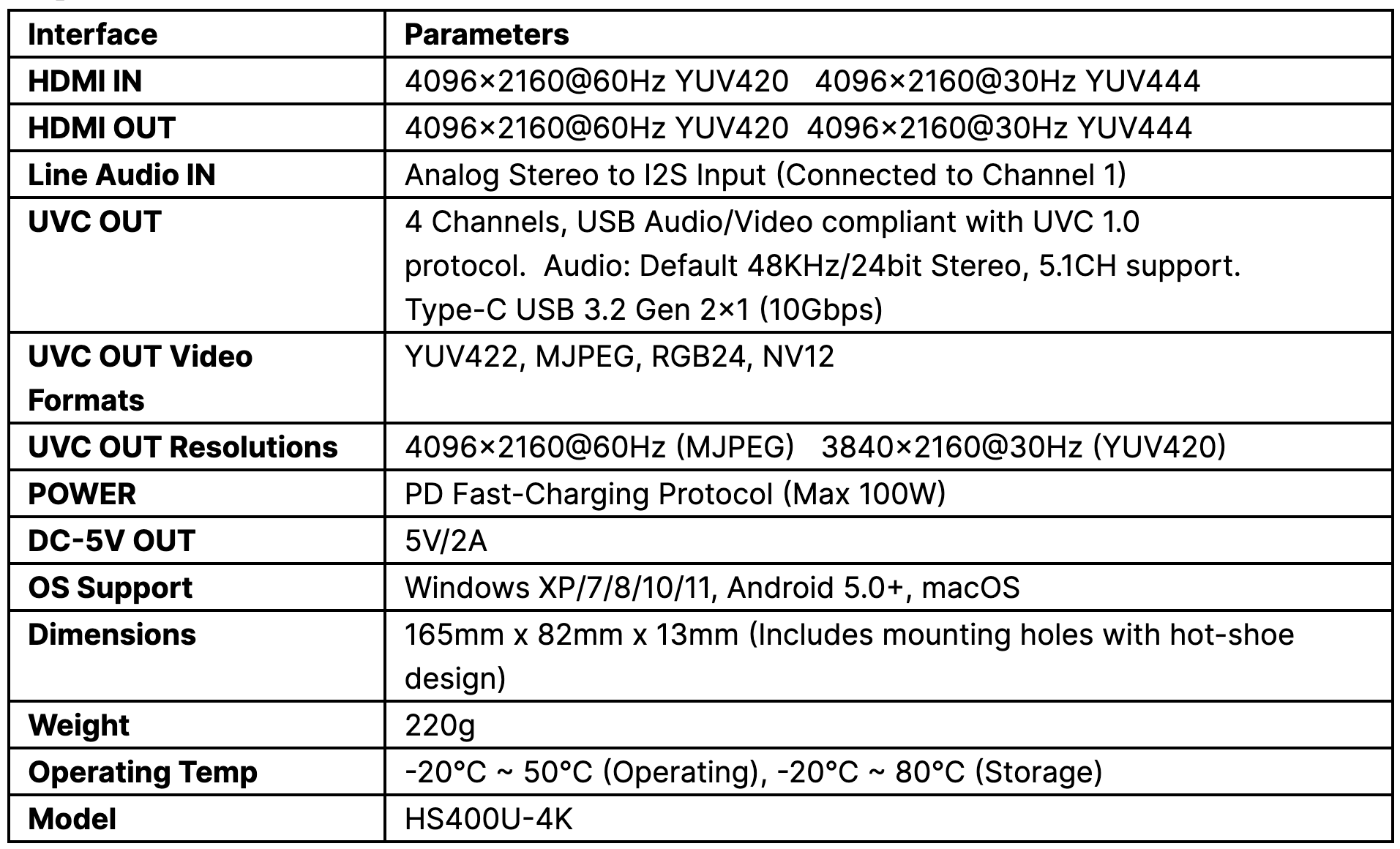

Supports:

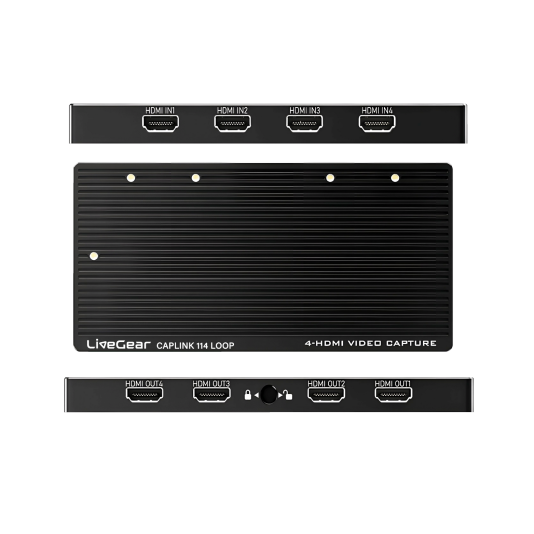

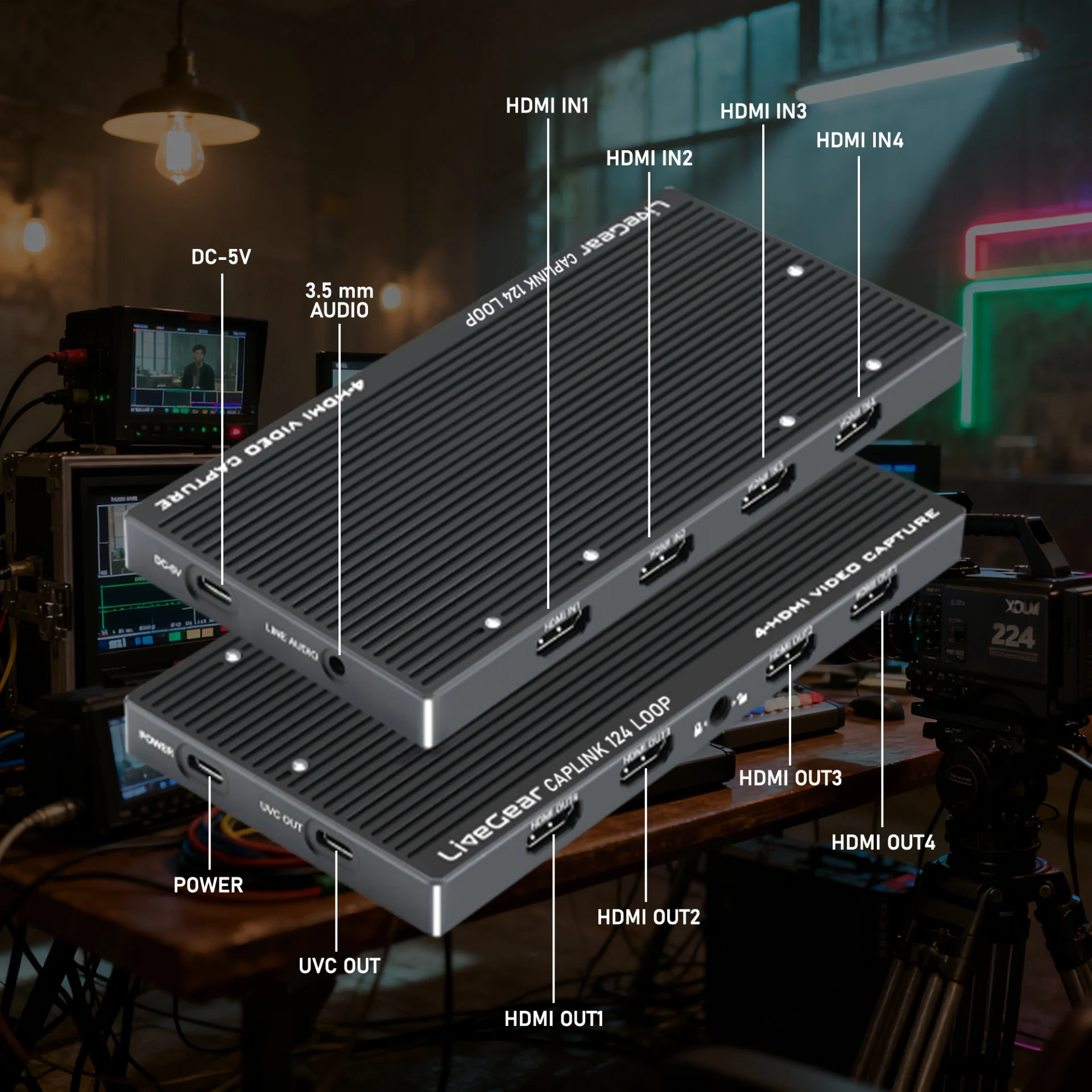

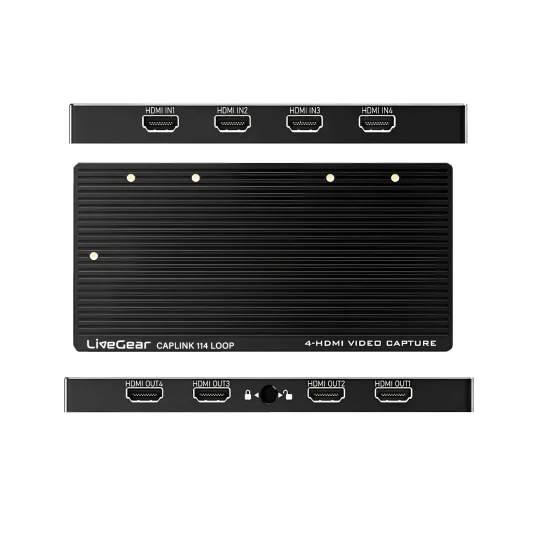

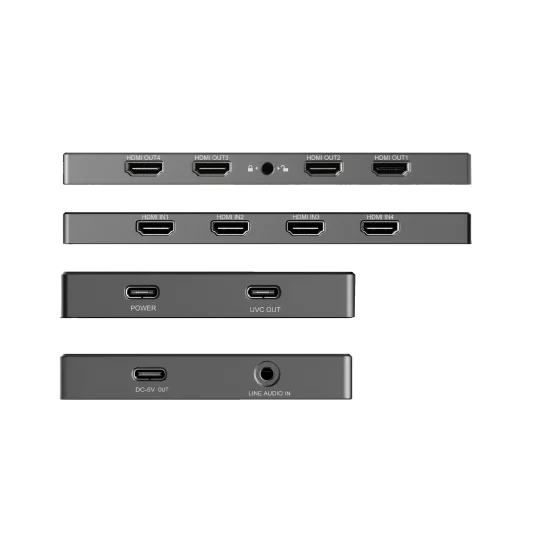

· Input: 4x HDMI 4K@60Hz
· Output: 4x HDMI 4K@60Hz, 1x Stereo Line Audio Input
· UVC Output: 44096x2160@60Hz (MJPG)/3840x2160@30Hz (YUV420) Ultra HD Signals
- Model: CALISTA
- SKU: LG-Capture-4Ch-LoopOut
-
