Mini 3G-SDI fiber optic converter adopts international advanced all-digital gigabit optical fiber transmission technology, the3G-SDI video signal can be transmitted through one fiber with non-distortion, high-quality, long-distance transmission.This series of video to fiber optic converter has stable performance, clear picture quality, and high stability with LED status indication on the body of device. The working status of devices can be visually observed. Besides, the switch value, voltage, working status and other reverse useful signal information can be controlled by RS485 or RS232.This ensures our devices more flexible when different customers’ request comes.
Features

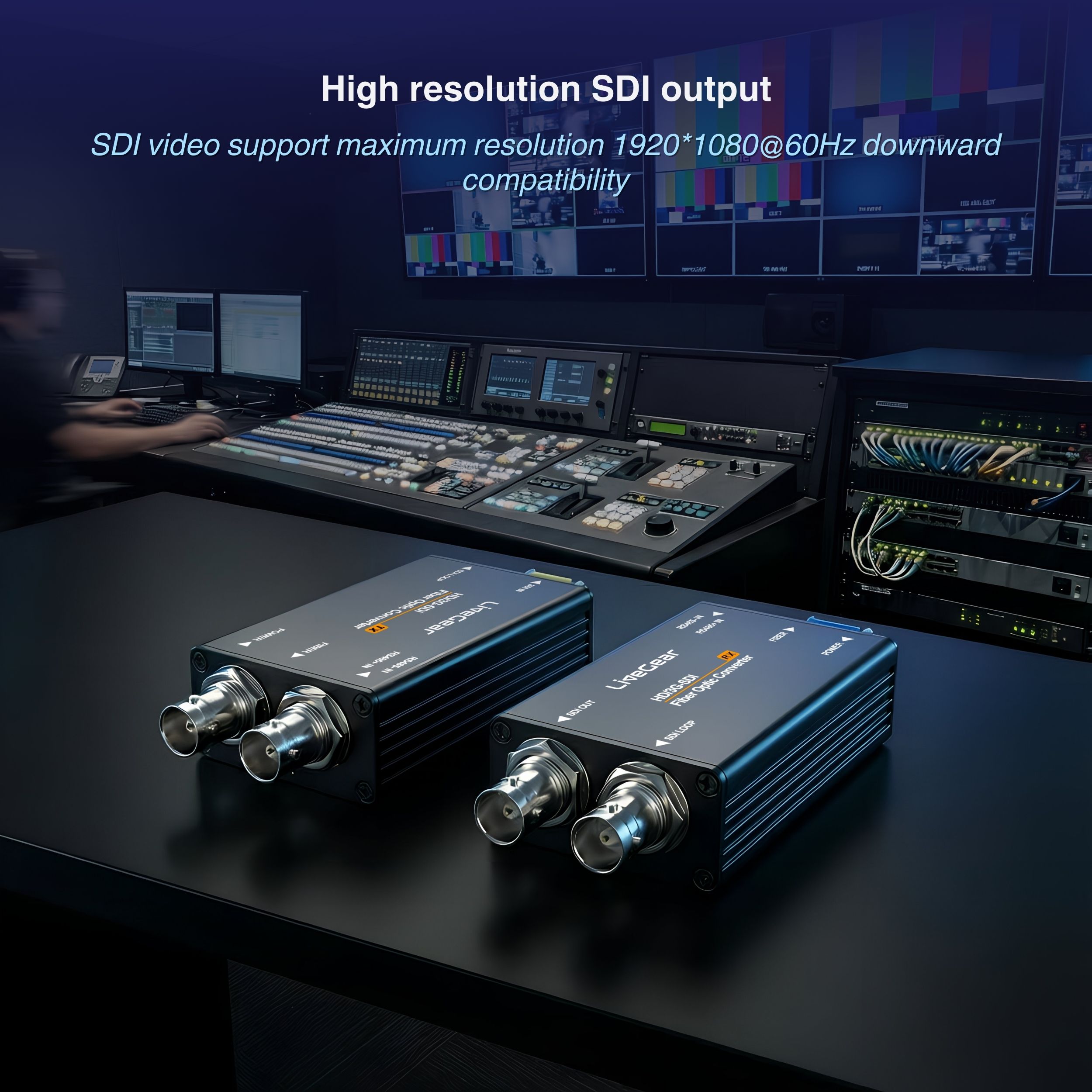

1.SDI video support maximum resolution 1920*1080@60Hz downward compatibility
2.Support backward compatibility with HD-SDI and SD-SDI
3.Support re-timing function
4.Support video loop out function
5.Support one channel reverse RS485 data

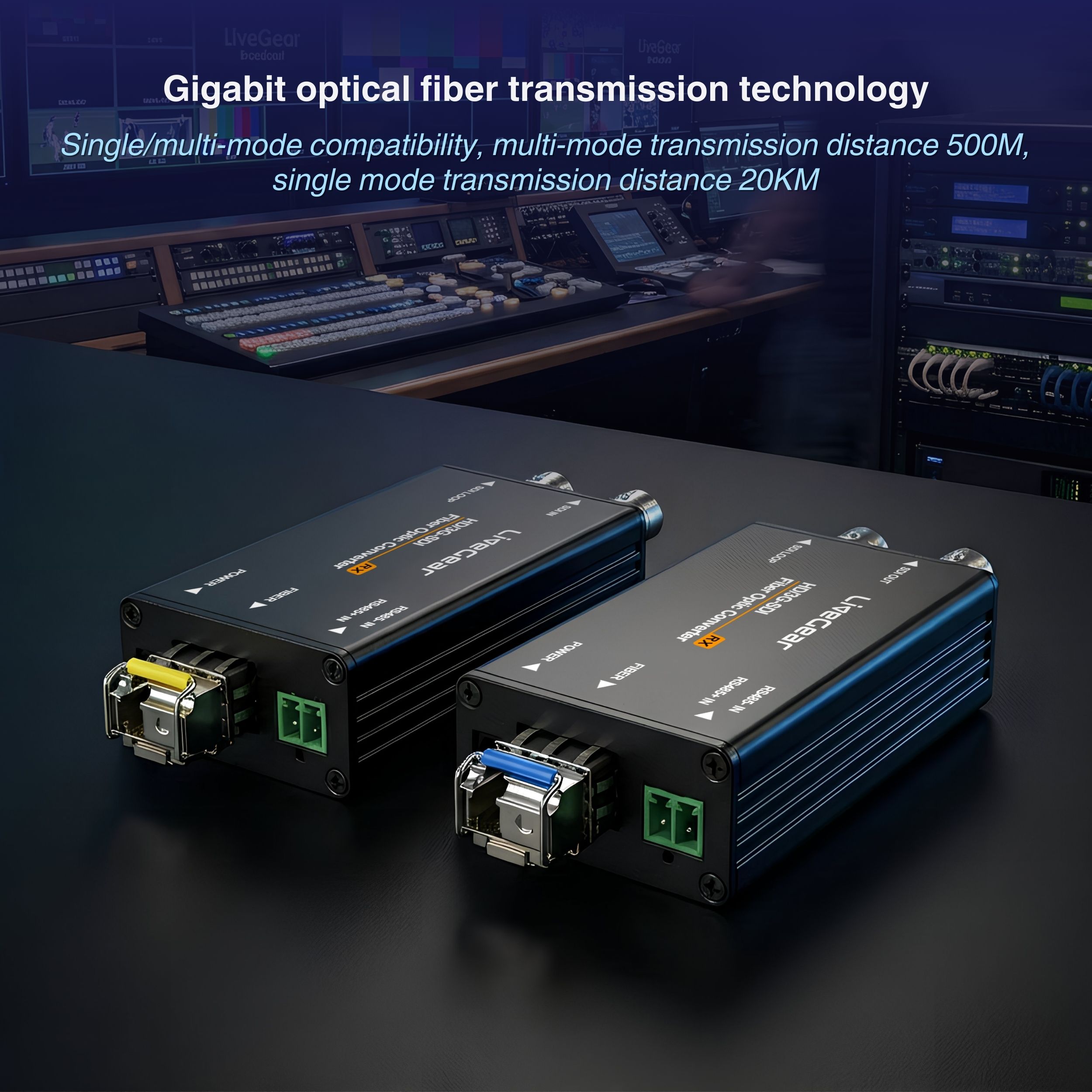

6.Single/multi-mode compatibility, multi-mode transmission distance 500M, single mode transmission distance 20KM
7.Plug and play, no setting required

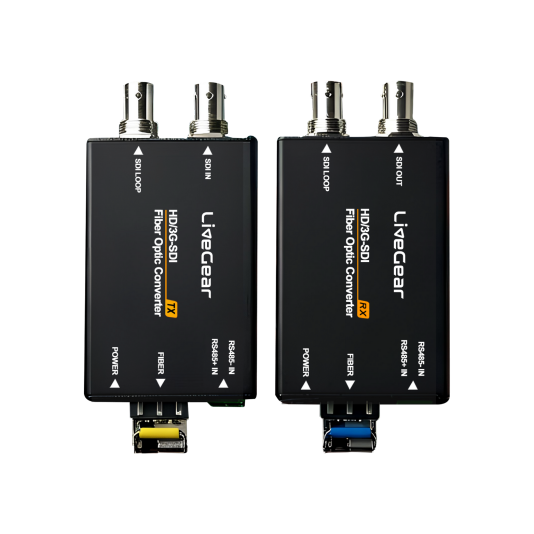

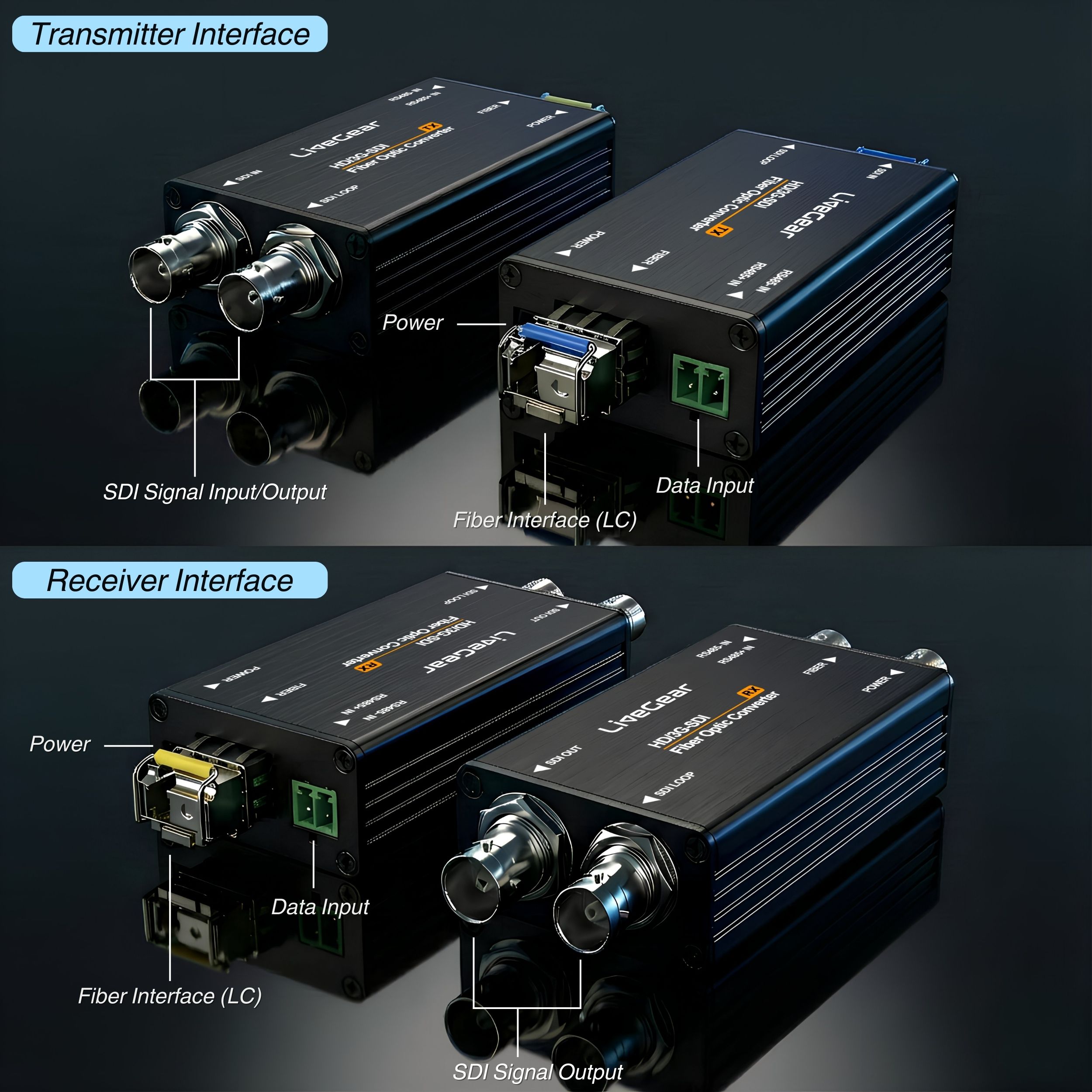

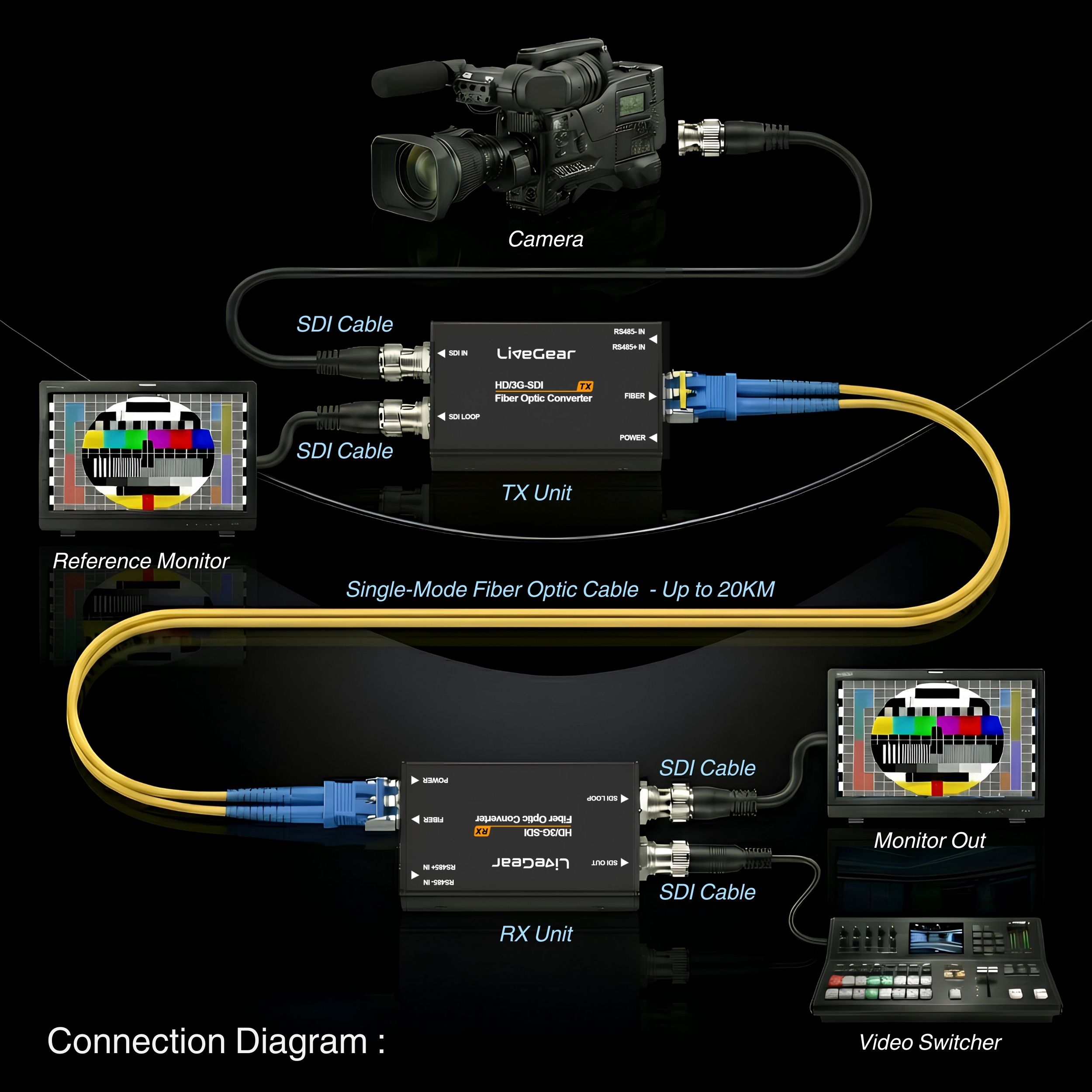

8.Devices are used in pairs,note that devices are distinguished by transmitter and receiver

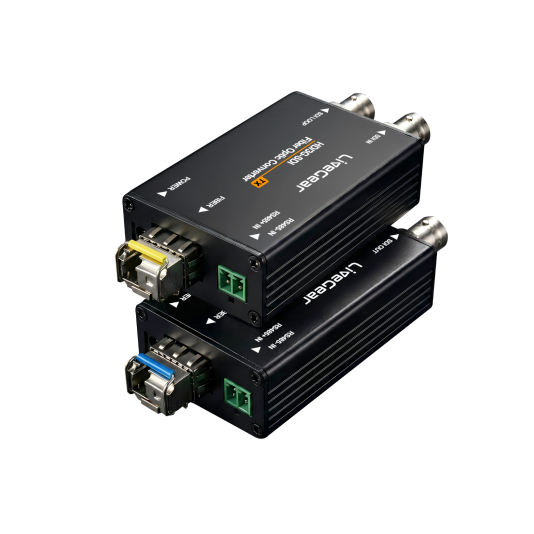

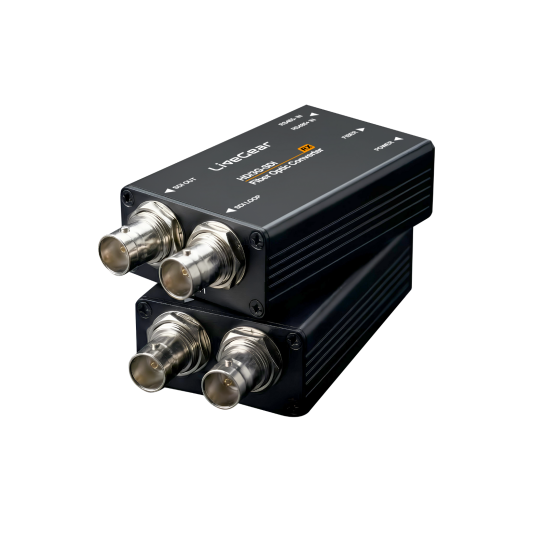

- Model: XLC200
- SKU: LG-XLC-200
-
